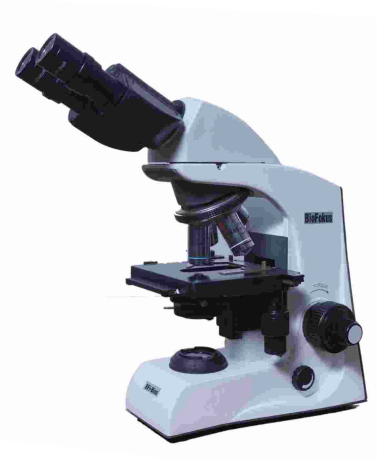

RESEARCH MICROSCOPE

VIEWING HEAD

AVAILABLE IN MONOCULAR, BINOCULAR AND TRINOCULAR VIEWING HEADS

STANDARD FEATURES

  1. Single Mould Rigid Structure with a Window in Arm for easy Carriage
  2. Viewing tube: As per Requirement
  3. Head Siedentopf Type 30 Degree Inclined and Rotatable at 360 degree.
  4. Reversed Inward Quadruple Ball Bearing nose piece with positive click stops.
  5. Co-axial Coarse & Fine focusing Graduated to 1Div=.002mm.
  6. With Ball Bearing Driven Mechanical stage for X&Y movement of slide.
  7. Movable abbe Condensor N.A.1.25 with iris diaphragm with swingout filter holder.
  8. Steple Grey, chemical resistant, back-on finish.
  9. Complete with Instruction Manual and dust cover.
  10. Duly packed in styrofom packing.

OPTICAL COMBINATION

EYE PIECES: WF 10X/20mm
OBJECTIVES: 4X, 10X, 40X S/L, 100X S/L [Infinity Plan Achromatic]
MAGNIFICATION: X40 – X1000

OPTIONAL ACCESSORIES

  1. Wooden Carrying Case
  2. Objectives: X20, X45 S/L, X60 S/L

UGRADABLE TO:

Fluoroscence Attachement, Metallurgical, Polarizing

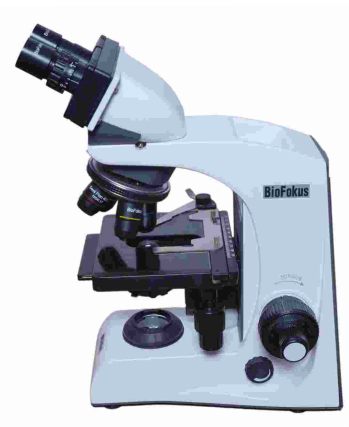

PATHOLOGICAL BINOCULAR MICROSCOPE

VIEWING HEAD

AVAILABLE IN MONOCULAR, BINOCULAR AND TRINOCULAR VIEWING HEADS

STANDARD FEATURES

  1. Viewing tube: As per Requirement
  2. Head Rotatable at 360 degree
  3. Quadruple Ball Bearing nose piece with positive click stops.
  4. Co-axial Coarse & Fine focusing Graduated to 1Div=.002mm.
  5. With Ball Bearing Driven Mechanical stage for X&Y movement of slide.
  6. Movable abbe Condensor N.A.1.25 with iris diaphragm with swingout filter holder.
  7. Steple Grey, chemical resistant, back-on finish.
  8. Complete with Instruction Manual and dust cover.
  9. Duly packed in styrofom packing.

OPTICAL COMBINATION

EYE PIECES: WF 10X
OBJECTIVES: 4X, 10X, 40X S/L, 100X S/L [Achromatic]
MAGNIFICATION: X40 – X1000

OPTIONAL ACCESSORIES

  1. Wooden Carrying Case
  2. Objectives: X20, X45 S/L, X60 S/L

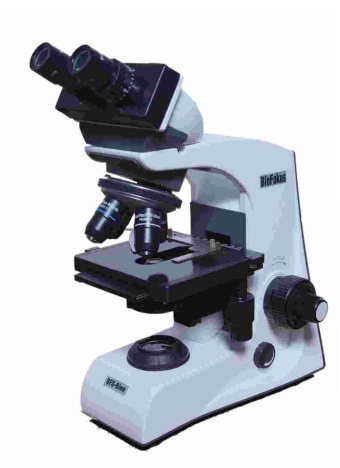

BINOCULAR MICROSCOPE

VIEWING HEAD

AVAILABLE IN MONOCULAR, BINOCULAR AND TRINOCULAR VIEWING HEADS

STANDARD FEATURES

  1. Single Mould Rigid Structure with a Window in Arm for easy Carriage
  2. Viewing tube: As per Requirement
  3. Head Sliding Type 45 Degree Inclined and Rotatable at 360 degree.
  4. Quadruple Ball Bearing nose piece with positive click stops.
  5. Co-axial Coarse & Fine focusing Graduated to 1Div=.002mm.
  6. With Ball Bearing Driven Mechanical stage for X&Y movement of slide.
  7. Movable abbe Condensor N.A.1.25 with iris diaphragm with swingout filter holder.
  8. Steple Grey, chemical resistant, back-on finish.
  9. Complete with Instruction Manual and dust cover.
  10. Duly packed in styrofom packing.

OPTICAL COMBINATION

EYE PIECES: WF 10X/18mm
OBJECTIVES: 4X, 10X, 40X S/L, 100X S/L [Semi Plan Achromatic]
MAGNIFICATION: X40 – X1000

OPTIONAL ACCESSORIES

  1. Wooden Carrying Case
  2. Objectives: X20, X45 S/L, X60 S/L

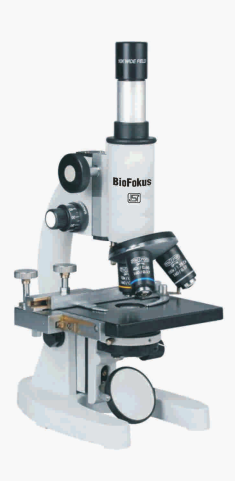

MEDICAL MICROSCOPE

STANDARD FEATURES

  1. Sturdy and well balanced monocular body, inclined to horizontal level of 90 degree
  2. Graduated X-Y movement Mechanical Stage 120 mm x 120 mm
  3. Dust proof triple revolving nose piece with positive click stops
  4. Focusing by coarse and fine adjustment with scale.
  5. Substage Abbe type N.A. 1.25 condenser with iris diaphragm
  6. Illumination by plano concave mirror in fork mount.
  7. Steple Grey, chemical resistant, back-on finish.
  8. With dust cover dully packed in styofoam case.

OPTICAL COMBINATION

EYE PIECES: 5X & 10X [Huygenian]
OBJECTIVES: 10X & 40X S/L & 100X S/L [Achromatic]
MAGNIFICATION: X50 – X1000

OPTIONAL ACCESSORIES

  1. Illumination by sub stage pin type lamp working on 220 volts – 15 watt. Model : ML-1.
  2. Eye Pieces: W.F. 10X
  3. Objectives: X4, X20, X45 S/L, X60 S/L, X100 S/L Oil lmm

DIGITAL USB CAMERA

  • Cameras can be widely used to transfer with Trinocular Microscopes to a digital microscope.
  • Comes with Adopter with 23.2 diameter and compact size
  • High-quality camera with Aptina CMOS sensor
  • Auto white balance and auto-exposure; Brightness, contrast, chroma, and saturation can be adjusted
  • High-speed USB2.0 interface and high frame rate video display keep the screen smooth without interruption
  • Interfaced to a computer via USB2.0 technology for rapid image download.
  • Plug-to-use, suitable for shooting of any standard biological, stereo, and metallurgical microscopes.
  • Fully integrated package with a digital camera and imaging software for managing your imaging workflow.
  • Data can be shared, stored and edit, real-time preview function offers you the greatest experience with themicroscope
  • Support still image capture(JPG, BMP)
  • Available in 2MP, 5MP, 10MP, 14MP, and many more options
  • Available in 2MP or 5MP option

DIGITAL EYEPIECE CAMERA

  • The Cameras can be widely used to transfer the monocular or binocular student microscopes to a digital microscope.
  • Microscope eyepiece camera with 23.2 diameter and compact size
  • High-quality camera with Aptina CMOS sensor
  • Auto white balance and auto-exposure; Brightness, contrast, chroma, and saturation can be adjusted
  • High-speed USB2.0 interface and high frame rate video display keep the screen smooth without interruption;
  • With video & image processing application
  • Available in 2MP or 5MP option
